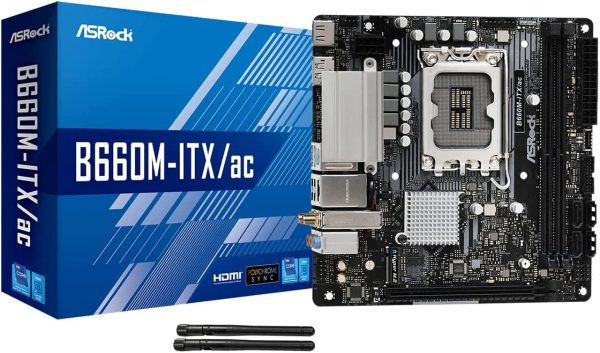

ASRock B660M-ITX/AC LGA 1700 Intel B660 SATA 6Gb/s DDR4 Mini ITX Motherboard

Description Unique Feature ASRock Super Alloy – Premium Power Choke – 50A Dr.MOS – Sapphire Black PCB – High Density Glass Fabric PCB 802.11ac WiFi ASRock Hyper M.2 (PCIe Gen4x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop CPU – Supports 12th Gen Intel® Core™ Processors (LGA1700) – Digi Power design – 6 Power Phase design – Supports Intel® Hybrid Technology – Supports Intel® Turbo Boost Max 3.0 Technology Chipset – Intel® B660 Memory – Dual Channel DDR4 Memory Technology – 2 x DDR4 DIMM Slots – Supports DDR4 non-ECC, un-buffered memory up to 5000 (OC)* – Supports ECC UDIMM memory modules (operate in non-ECC mode) – Max. capacity of system memory: 64GB – Supports Intel® Extreme Memory Profile (XMP) 2.0 *Supports DDR4 3200 natively. BIOS – 128Mb AMI UEFI Legal BIOS with multilingual GUI support – ACPI 6.0 Compliant wake up events – SMBIOS 2.7 Support – CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, 1.05V PROC, 1.8V PROC, 0.82V PCH, 1.05V PCH Voltage Multi-adjustment Graphics – Intel® Xe Graphics Architecture (Gen 12) – Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers – Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz – Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680×4320) @ 60Hz / 5K (5120×3200) @ 120Hz – Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Audio – 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Supports Surge Protection LAN – Gigabit LAN 10/100/1000 Mb/s – Giga PHY Intel® I219V – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports UEFI PXE Wireless LAN – 802.11ac WiFi Module – Supports IEEE 802.11a/b/g/n/ac – Supports Dual-Band (2.4/5 GHz) – Supports high speed wireless connections up to 433Mbps – Supports Bluetooth High speed class II Slots CPU: – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) *Supports NVMe SSD as boot disks Storage CPU: – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* Chipset: – 4 x SATA3 6.0 Gb/s Connectors** *Supports Intel® Optane™ Memory H Series Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks Supports ASRock U.2 Kit ** If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled. RAID – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Connector – 1 x Addressable LED Header* – 1 x CPU Fan Connector (4-pin)** – 1 x Chassis Fan Connector (4-pin)*** – 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x Front Panel Audio Connector – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) – 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) *Supports in total up to 5V/3A, 15W LED Strip **The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ***The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power. ****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O – 2 x Antenna Ports – 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port – 1 x DisplayPort 1.4 – 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) – 2 x USB 2.0 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI Software – ASRock Motherboard Utility (A-Tuning) – ASRock Polychrome SYNC – ASRock XFast LAN UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Instant Flash – ASRock Internet Flash – ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD – Drivers, Utilities, AntiVirus Software (Trial Version) Accessories – Quick Installation Guide, Support CD, I/O Shield – 2 x SATA Data Cables – 2 x ASRock WiFi 2.4/5 GHz Antennas – 1 x Screw for M.2 Socket Hardware Monitor – Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans – Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans – Voltage monitoring: CPU Vcore, 12V, 5V, 3.3V, 1.05V PCH Form Factor – Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm – Solid Capacitor design OS – Microsoft® Windows® 10 64-bit / 11 64-bit Certifications – FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required)
