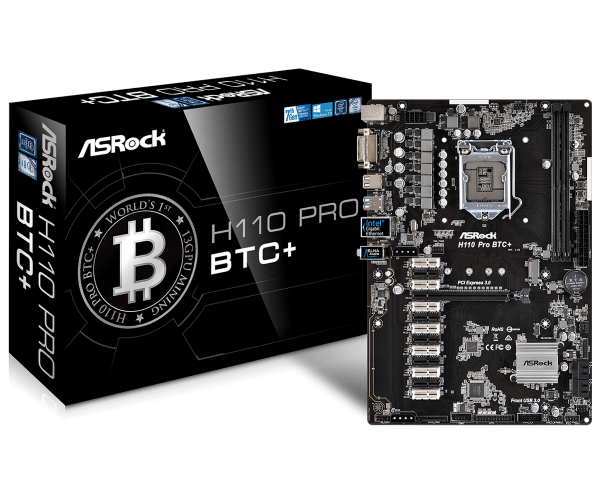

ASRock H110 Pro BTC Mining Motherboard with 13 PCI Express Slots Used

Description Details ASRock Super Alloy Supports 7th and 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors Supports DDR4 2400/2133 1 PCIe 3.0 x16, 12 PCIe 2.0 x1 Graphics Output: DVI-D 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps 4 SATA3, 1 M.2 (SATA3) 4 USB 3.0 (2 Front, 2 Rear) Intel® Gigabit LAN Onboard Power On / Reset Button Unique Feature ASRock Super Alloy – Sapphire Black PCB – High Density Glass Fabric PCB ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop CPU – Supports 7th and 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1151) – Supports CPU up to 91W – Digi Power design – 8 Power Phase design – Supports Intel® Turbo Boost 2.0 Technology Chipset – Intel® H110 Memory – Dual Channel DDR4 Memory Technology – 2 x DDR4 DIMM Slots – Supports DDR4 2400/2133 non-ECC, un-buffered memory* – Supports ECC UDIMM memory modules (operate in non-ECC mode) – Max. capacity of system memory: 32GB* – Supports Intel® Extreme Memory Profile (XMP) 2.0 – 15μ Gold Contact in DIMM Slots *7th Gen Intel® CPU supports DDR4 up to 2400; 6th Gen Intel® CPU supports DDR4 up to 2133. **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. BIOS – 64Mb AMI UEFI Legal BIOS with multilingual GUI support – ACPI 5.0 Compliant wake up events – SMBIOS 2.7 Support – CPU, DRAM, PCH 1.05V Voltage multi-adjustment Graphics – Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics – Gen9 LP, DX11.3, DX12 – HWAEncode/Decode: VP8, HEVC 8b, VP9, HEVC 10b (For 7th Gen Intel® CPU) – HWA Encode/Decode: VP8, HEVC 8b; GPU/SWEncode/Decode: VP9, HEVC 10b (For 6th Gen Intel® CPU) – Max. shared memory 1024MB** – Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz – Supports Accelerated Media Codecs: HEVC, VP8, VP9 – Supports HDCP with DVI-D Port – Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port *Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. **The size of maximum shared memory may vary from different operating systems. Audio – 7.1 CH HD Audio (Realtek ALC887 Audio Codec)* – Supports Surge Protection – ELNA Audio Caps *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. LAN – Gigabit LAN 10/100/1000 Mb/s – Giga PHY Intel® I219V – Supports Wake-On-LAN (Supported on Black PCIe Slots only) – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports PXE Slots – 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* – 12 x PCI Express 2.0 x1 Slots *Supports NVMe SSD as boot disk Storage – 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug* – 1 x M.2 Socket, supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module *If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled. Connector – 1 x Print Port Header – 1 x COM Port Header – 1 x TPM Header – 1 x Chassis Intrusion and Speaker Header – 1 x CPU Fan Connector (4-pin)* – 2 x Chassis Fan Connectors (4-pin) – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 2 x PCIe Power Connectors-1 x SATA Power Connector – 1 x Front Panel Audio Connector – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection) *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. Rear Panel I/O – 1 x PS/2 Mouse Port – 1 x PS/2 Keyboard Port – 1 x DVI-D Port – 4 x USB 2.0 Ports (Supports ESD Protection) – 2 x USB 3.0 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI Software – ASRock APP Charger – ASRock XFast LAN* UEFI – ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Accessories – Quick Installation Guide, Support CD, I/O Shield – 2 x SATA Data Cables – 1 x Screw for M.2 Socket Hardware Monitor – CPU/Chassis temperature sensing – CPU/Chassis Fan Tachometer – CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) – CPU/Chassis Fan multi-speed control – CASE OPEN detection – Voltage monitoring: 12V, 5V, 3.3V, CPU Vcore Form Factor – ATX Form Factor: 12.0-in x 8.2-in, 30.5 cm x 20.8 cm – Solid Capacitor design OS – Microsoft® Windows® 10 64-bit (For 7th Gen Intel® CPU) – Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit (For 6th Gen Intel® CPU) *To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions. Certifications – FCC, CE
