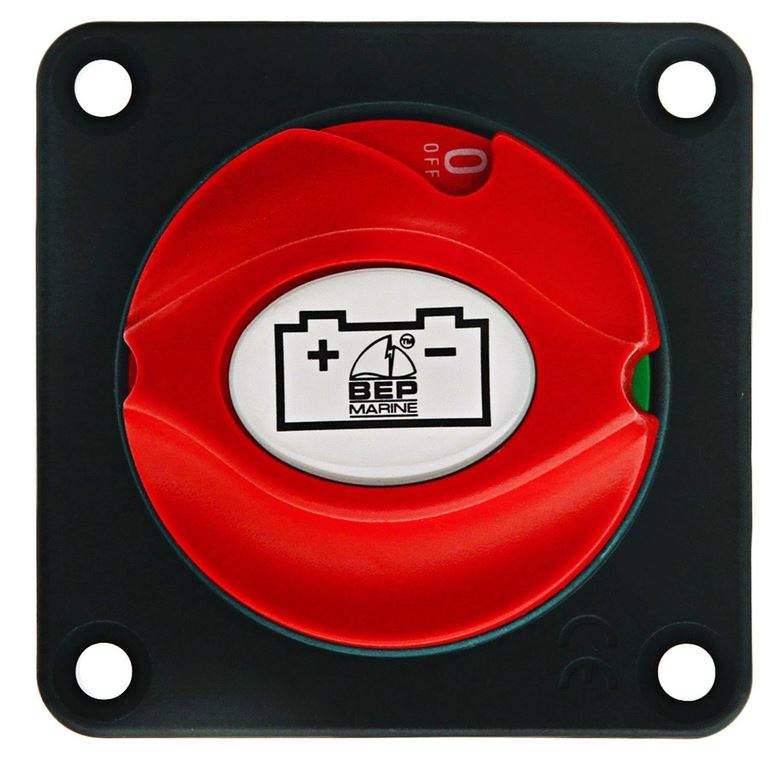

BEP CONTOUR BATTERY SWITCH PM 275A MC20

Description The BEP 701PM Panel Mount Battery Switch Single Battery Bank is the latest addition to the panel mount range of battery switches. This one is specifically designed for panel mount applications. This battery switch is moulded in a high strength, fibre reinforced plasic with high temperature performance and great resistance to chemicals that damage other plastic types. BEP 701PM Panel Mount Battery Switch Features: Fits standard BEP battery switch label range. Removable key CSK recessed for surface mount application Standard 2 1/16″ hole cut out (Same as standard gauge hole) Ignition Protected Full access for cables with no restrictions Fit into Contour Connect Panel Waterproof BEP 701PM Panel Mount Battery Switch Specifications: Continuous Rating: 275 Amps DC Intermittent Rating: 455 Amps DC Cranking (Peak) Rating: 1250 Amps DC Voltage Rating: 48 Volts DC Operation: On/Off Mounting: Recessed or Surface Ignition protected Termination Stud Size: 2 x 10 mm (3/8 inch) Dimensions: 69 x 69 x 75h mm (2.75 x 2.75 x 3h inches) Tin plated copper studs and nuts
