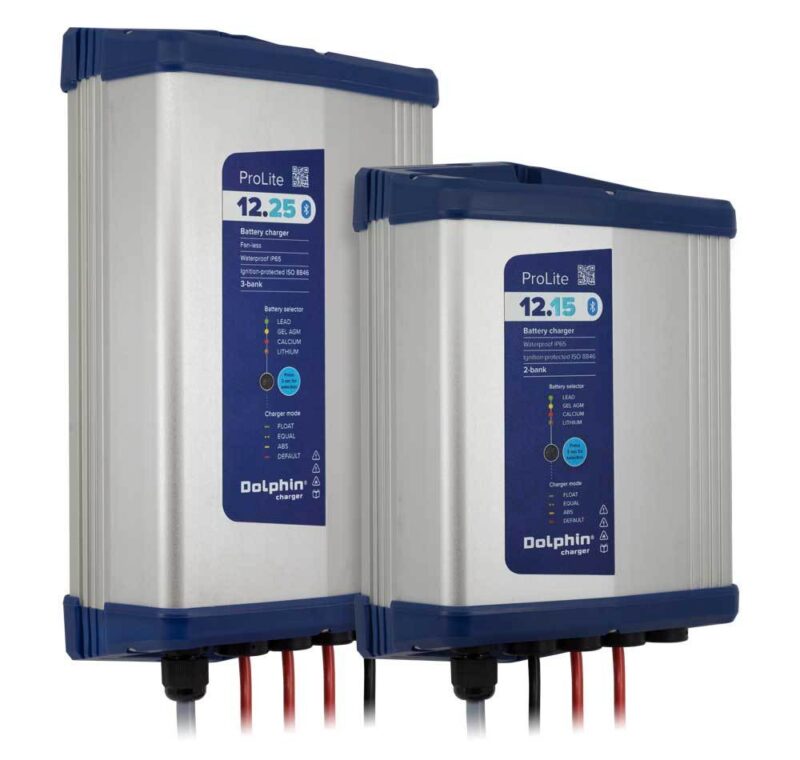

DOLPHIN PRO LITE 12V 25A IP65 3 OUT

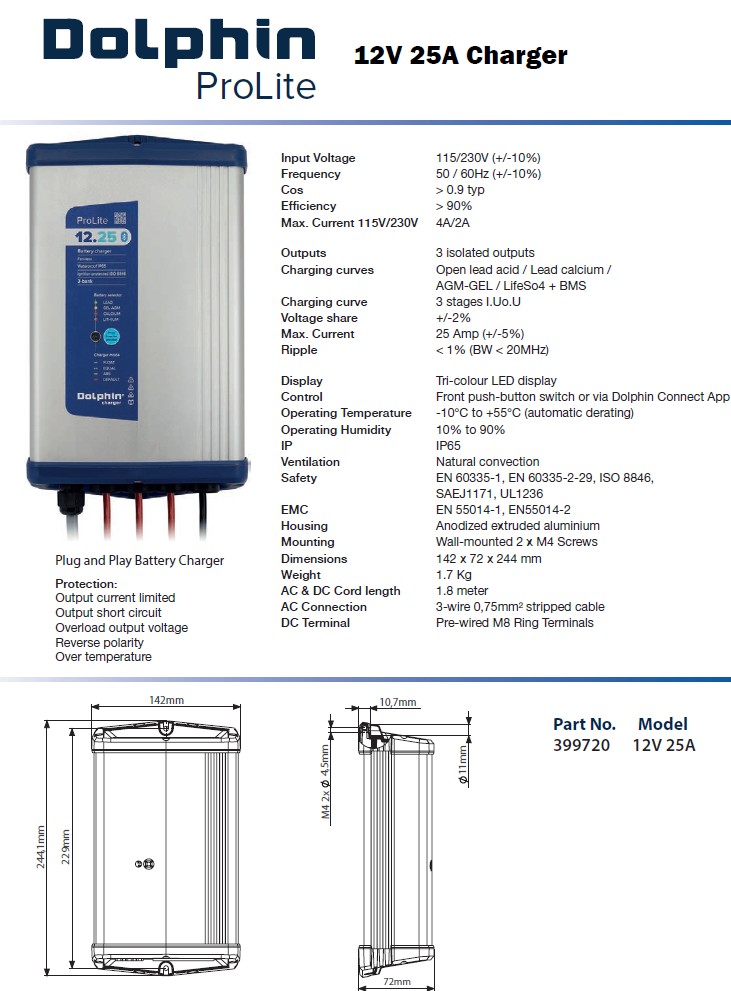

Description DOLPHIN PRO LITE 12V 25A IP65 3 OUT The best charger for sailboats, center console boats, sport fishing boats and other outboard engine pleasure craft Power range : from 15A to 25A IP65 water-resistant Protected against ignition of flammable gases (ISO 8846 certified by US Laboratory IMANNA) for use in combination with outboard gasoline engines Totally dust-tight 40% smaller and 50% lighter than most competitors 100% silent : PROLITE is a fan-less charger which makes it perfectly silent and therefore perfect for mounting anywhere into small (living) spaces Smart : PROLITE chargers come with the brand-new Dolphin Connect App (iOS and Android) and with Bluetooth interface as standard equipment Super-efficient : 92% of the power which comes in is converted and comes out (without heat) through 2 outputs (15A version) or 3 outputs (25A) PROLITE works with any battery technology on the market including Lithium Ion 2-year-warranty SPECIFICATIONS: Input Input Voltage 115/230V ( /-10%) Frequency 50 / 60Hz ( /-10%) Cos > 0.9 typ Efficiency > 90% Max. Current 115V/230V 4A/2A Output Number of outputs 3 isolated outputs Number of charging curves Open lead acid / Lead calcium / AGM-GEL / LifeSo4 BMS Charging curve 3 stages I.Uo.U Voltage share /-2% Max. Current 25 Amp ( /-5%) Ripple < 1% (BW < 20MHz) Physical Display Tri-colour LED display Control Front push-button switch or via Dolphin Connect App Operating Temp -10°C to 55°C (automatic derating) Storage Temp -20°C to 70°C Humidity 10% to 90% IP IP65 Ventilation Natural convection Safety EN 60335-1, EN 60335-2-29, ISO 8846, SAEJ1171, UL1236 EMC EN 55014-1, EN55014-2 Housing Anodized extruded aluminium Mounting Wall-mounted 2 x M4 Screws Dimensions 142 x 72 x 244 mm Weight 1.7 Kg AC & DC Cord length 1.8 meter AC Connection 3-wire 0,75mm² stripped cable DC Terminal Pre-wired M8 Ring Terminals Protection Output current limited Output short circuit Overload output voltage Reverse polarity Over temperature
