WEINTEK HMI 7″ TOUCH SCREEN MT8071IP | MT8072IP and TK8072ip in Pakistan

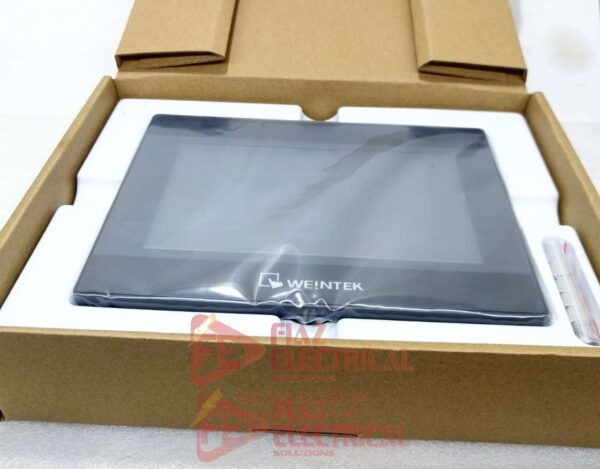

WEINTEK HMI 7″ TOUCH SCREEN MT8071IP | MT8072IP and TK8072ip in PakistanWeintek produces several 7-inch HMI models with varying specifications; key models include the TK8071iP, MT8071iP, and MT8071iE, which generally feature an 800 x 480 pixel resolution and common connectivity options. The exact specifications depend on the specific model and series. Common Specifications (MT8071iP Model)The Weintek MT8071iP model is a popular 7-inch HMI, and its typical specifications are detailed below,Display: 7″ TFT LCD, resistive touchscreen type. Resolution: 800 x 480 pixels. Processor: 32-bit RISC Cortex-A8 600MHz CPU. Memory: 128 MB Flash memory and 128 MB RAM. Connectivity: Ethernet: 10/100 Base-T x 1. USB: USB 2.0 Host port x 1. Serial Ports: COM1 (RS-232), COM2 (RS-485 2W/4W). Power Input: 10.5~28VDC. Protection: NEMA4 / IP65 compliant front panel. Software: Programmed using EasyBuilder Pro software. Dimensions (WxHxD): 200.4 x 146.5 x 34 mm (approx. 0.52 kg weight). Variations by ModelWEINTEK HMI 7″ TOUCH SCREEN MT8071IP | MT8072IP and TK8072ip in Pakistan While many 7-inch models share similar core specifications, there are some variations: TK6071iP: This model also has a 7-inch display and 800 x 480 resolution, but some sources list a 528MHz processor (ARM RISC) instead of 600MHz. MT8072iP: This model is very similar to the MT8071iP but might offer different features or a slightly updated design. cMT Series: The cMT-FHDX models are “headless” HMIs that connect to an external monitor via HDMI, and do not have a built-in 7-inch screen. The specifications listed above are most commonly associated with the highly prevalent MT8071iP model. Do you need specific information about the specifications of another Weintek 7-inch HMI model, or are you looking for details on a particular feature like display brightness or operating temperature? for further details please check manual https://weintek.com.pk/product/weintek-software-manual/you can buy also plc from our website https://fiaz.com.pk/product/mitsubishi-plc-and-modules-fx2n-fx3u-and-fx3ga-in-pakistan/
